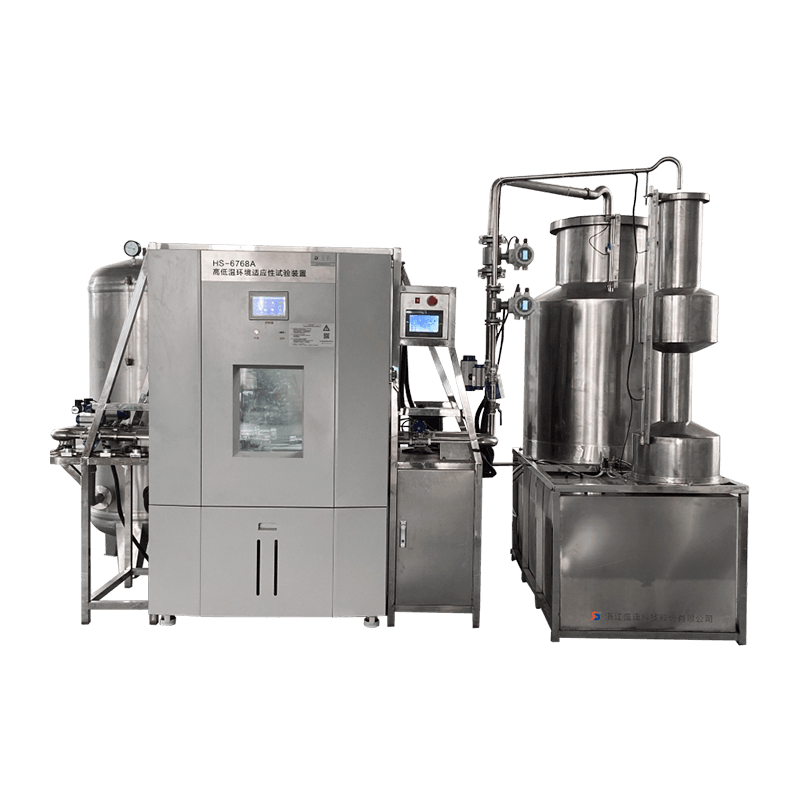

HS-6768A High and low temperature environmental adaptability test device

HS-6768A high and low temperature environment adaptability test device is used for cold water meter high and low temperature environment test. The water meter is in the test box and the water is in circulation. Equipped with a set of DN(15-25) start-stop volume method water meter verification device, a set of 3 epitope water flow ambient temperature program control test box and a set of self-circulating water supply system. Can realize the normal verification of reference flow of DN(15-25) cold water meter, the temperature of test box can be adjusted.

share:

Phone : 0086-573-86161698

contact us

Description

Model

HS-6768A

SIZE

DN15-DN25

Straight tube

≥10D

Water Meter Type

Mechanical water meter, ultrasonic water meter, electromagnetic water meter, remote water meter

Flow range

(0.01~8)m3/h

Position

3 meters

Pressure

0.3~0.6Mpa

Test Method

Start-stop method

Reference Gauge

10L/20L

50L/100L

uncertainty

Ur=(0.05%~0.2%),k=2

Stability

>0.2%

Pulse collection

Pulse:f=(0~10)kHz;

Communication:M-BUS、485

Temperature

(-25~55)℃

Dimension

1.5m×1m×1.8m(L×W×H)

Function advantage:
1.Can set the temperature range(-25-55)℃, lifting temperature adjustable.
2.Can realize the normal verification of reference flow of DN(15-25) cold water meter.
3.Automatic control the water flow time and flow verification.
4.Automatically read the water level of the standard gauge
5.The camera reads the indication value of the electronic water meter and calculates the error.
6.With Software Operate system which more humanized, intelligent, rich interface information,can support remote upgrade.。
7.Data processing: automatically calculation and draw verification conclusions, can save,query, correction, statistics, report printing and other database functions.
