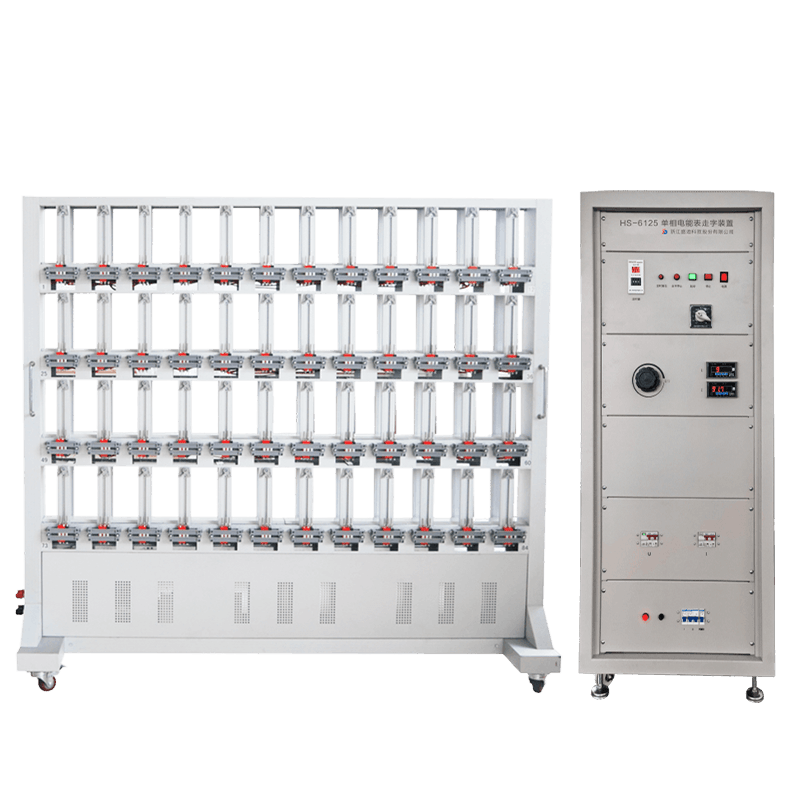

HS-6125 single-phase electric energy meter high temperature running word test device

It is applicable to the measurement and test centers of power companies in various provinces (cities, districts), the measurement departments of power supply companies, and electric energy meter manufacturers.
This device is suitable for the high-temperature running test of various single-phase electric energy meters.

share:

Phone : 0086-573-86161698

contact us

Description

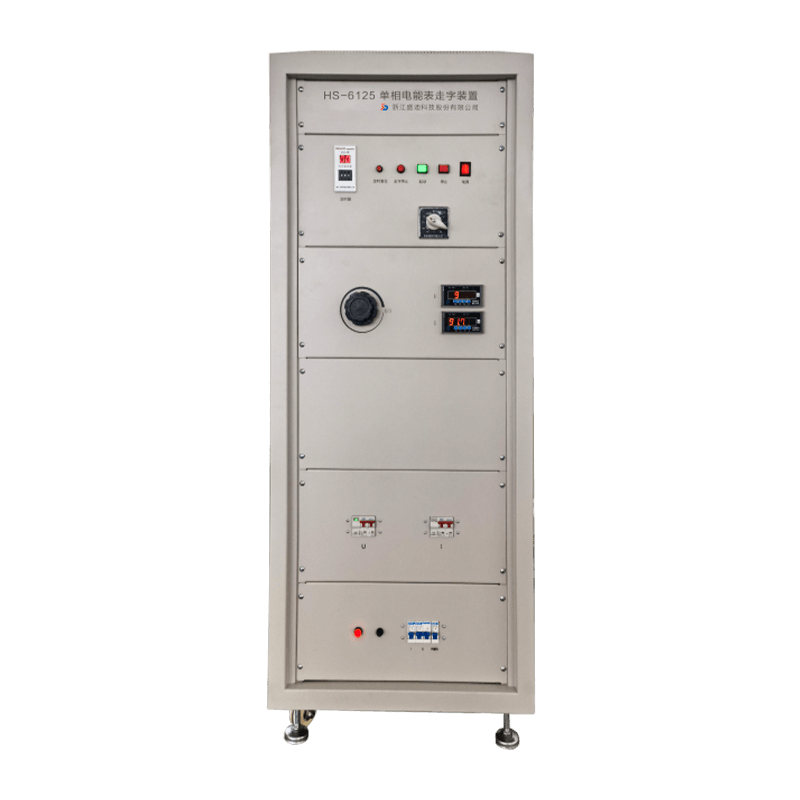

Single-phase power source

The output voltage

Range: 0~250VAC, maximum output capacity: 2000VA

Output current

Range: 0.1~40A, maximum output capacity: 2000VA (at 40A)

Load matching switch

Choose the appropriate gear according to the actual vehicle and load

Indicating instrument

Voltage and current are both digital

Dimensions

Width × depth × height: 600×800×1650mm

Power supply

AC 220V±10%, 50/60Hz, AC120V order needs to be stated;
maximum power consumption: 4000VA

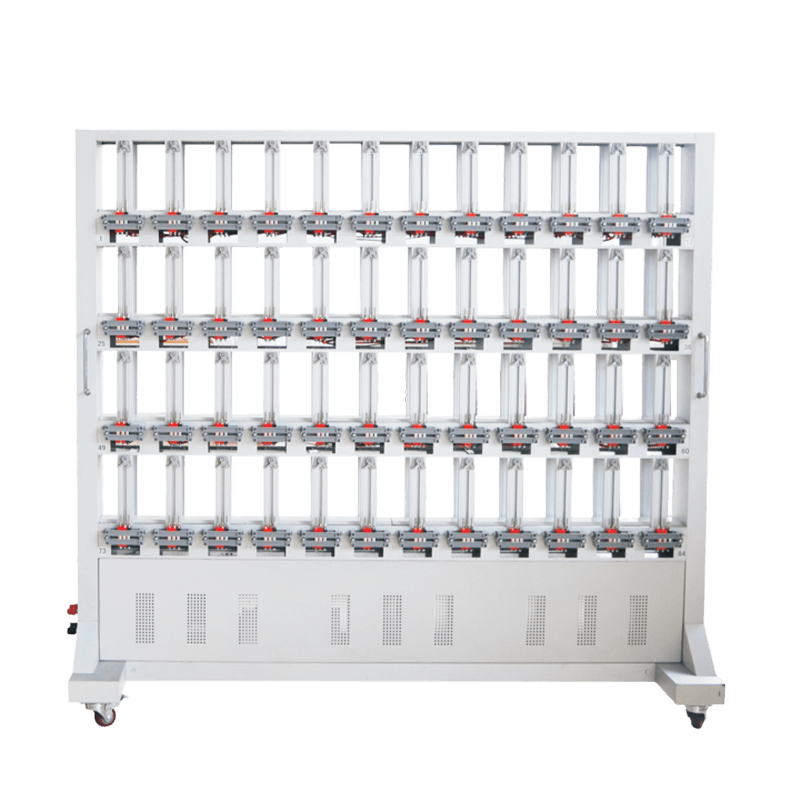

Single-phase watch stand

Table support

Adopt ABS crimp type meter holder (standard configuration), or according to user requirements.

Current loop wiring

Adjacent wiring or symmetrical wiring

Pocket watch structure

Double-sided pocket watch, single-sided 4 rows, 12 tables per row

Table space

Width 150mm×Height 180mm, the distance between the front and rear of the table holder is adjustable, and the terminals of the table holder are adjustable from left to right

Dimensions

Length×width×height: 1950×550×1800mm (96 epitopes)

Functional advantage:
1. It can realize timing running test for various single-phase electric energy meters of the same specification and different constants at the same time
2. The output voltage has automatic protection against overvoltage and overload
3. The output current has automatic protection for overcurrent and overload
