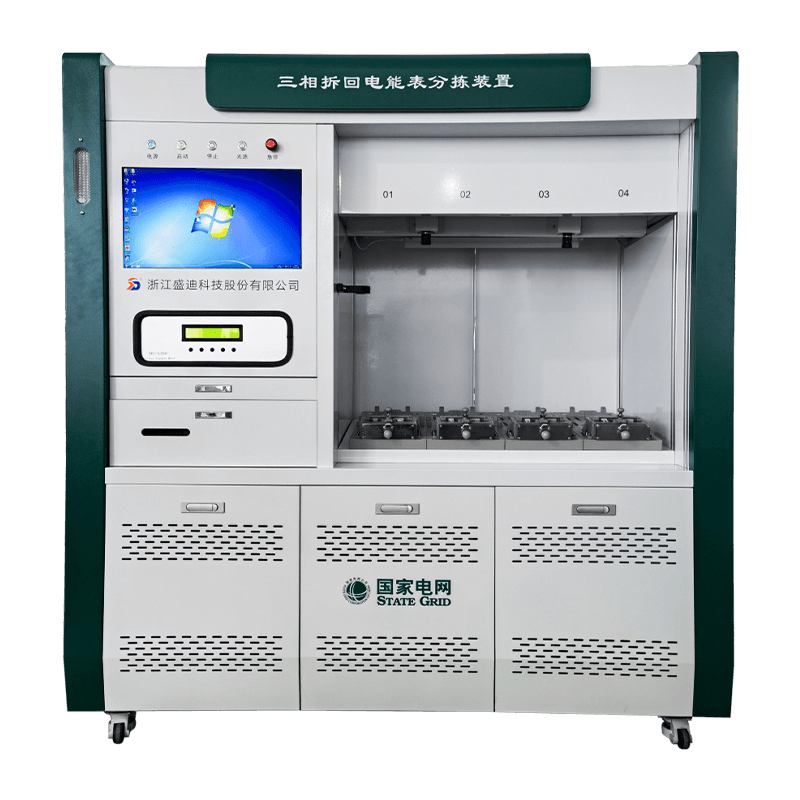

HS-6368 three-phase split back meter sorting device

The HS-6368 three-phase split-return meter sorting device is a device specially used for sorting old meters. It is mainly composed of a basic function detection unit, a fee control function detection unit, a communication function detection unit, an image recognition unit, a label printing unit, etc. It can be seamlessly connected with the measurement production scheduling platform.

share:

Phone : 0086-573-86161698

contact us

Description

Project

Technical Parameters

Table body accuracy level

0.05 level

Device standard table configuration

HS-5300 three-phase multi-function standard meter Accuracy level: 0.05

The output voltage

3×57.7V/100V/220V/380V; adjustment range: 0-120%, adjustment fineness: 0.01%, can be adjusted in phases;

Output current

3×1mA-50A (100A optional), adjustment fineness: 0.0001A (minimum);

Output phase

Range: 0-359.99°; adjustment fineness: 0.01°;

Output frequency

45Hz-65Hz; Adjustment fineness: 0.01 Hz;

Output waveform distortion

Voltage and current: ≤0.5%;

Power stability

≤0.05%;

Load characteristics

Resistive, inductive, capacitive

Start current output

1mA (minimum), accuracy: 2%, starting power: accuracy 5%;

Test function

Basic error test; creep test; start test; standard deviation test; image recognition

Communication test

RS485 communication test, according to the communication protocol of the tested meter;

Device input power

3 X 220V/380V (Y)±10%, 50Hz; maximum power consumption: 1500VA (8 tables)

Dimensions:

Integrated

Gauge

Dimensions: length × width × height mm

Split

Gauge

Dimensions: length × width × height mm

4

 1800×800×1800

8

 1200×800×1800

8

 1800×800×1800

Cabinet

600 (width) × 800 (depth) × 1845 (height)
