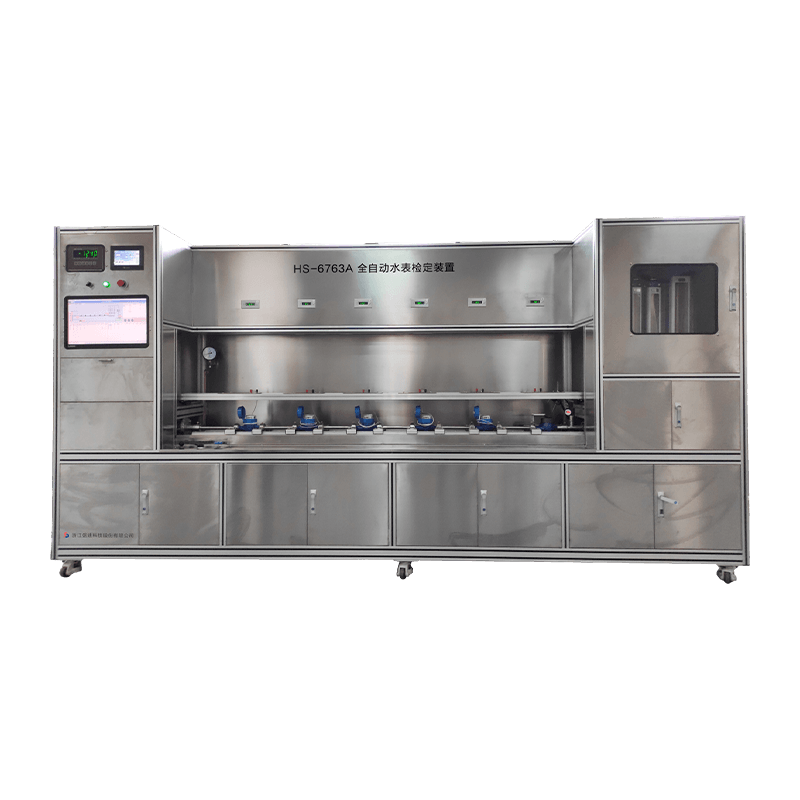

HS-6763 Automatic Water Meter Test Device(DN15-DN25)

HS-6763 automatic water meter test device is for checking cold water meter. Under the windows operating platform, the whole process of water meter test is automated by combining computer and PLC technology.

share:

Phone : 0086-573-86161698

contact us

Description

Model

HS-6763A( Quantity Method)

Size

DN15-DN25

Straight tube

≥10D

Water Meter Type

Mechanical water meter, ultrasonic water meter, electromagnetic water meter, remote water meter

Flow range

(0.01~8)m3/h

Position

6 Positions

Pressure

0.3~0.6Mpa

Test Method

start-stop method,commutation method,flow time method

Reference Gauge

120Kg,E=1/6000

Display value

5g,10g,20g

Max.error

>±0.1%( above min. weighing )

uncertainty

Ur=(0.05%~0.2%),k=2

Stability

>0.2%

Pulse collection

Pulse:f=(0~10)kHz; Visual recognition, laser recognition. Communication:M-BUS、485、near-infrared

Signal trasmission

Cell phone app wireless transmission, visual identification, laser identification sensor (mechanical water meter) Far infrared,485 communication, M-bus communication (remote water meter)

Clock frequency

(10~100)kHz(Can setup)

Stability of clock frequency

>5×10-8

Temperature

(20±5)℃(Option)

Dimension

5m×3m×3.5m(L×W×H)



Model

HS-6763B( Volumetric method )

Size

DN15-DN25

Straight tube

≥10D

Water Meter Type

Mechanical water meter, ultrasonic water meter, electromagnetic water meter, remote water meter

Flow range

(0.01~8)m3/h

Position

6 Positions

Pressure

0.3~0.6Mpa

Test Method

start-stop method,commutation method,flow time method

Reference Gauge

 String gourd method )

10L/20L

50L/100L

uncertainty

Ur=(0.05%~0.2%),k=2

Stability

>0.2%

Pulse collection

Pulse:f=(0~10)kHz; Visual recognition, laser recognition. Communication:M-BUS、485、near-infrared

Signal trasmission

Cell phone app wireless transmission, visual identification, laser identification sensor (mechanical water meter) Far infrared,485 communication, M-bus communication (remote water meter)

Clock frequency

(10~100)kHz( Can setup )

Stability of clock frequency

> 5×10-8

Temperature

(20±5)℃( Option )

Dimension

5m×3m×3.5m(L×W×H)

Function advantage:
1.One key to start,Can carry on the pressure test to the water meter, the Q1、Q2、Q3 flow point error test, the error curve drawing and so on.
2.Can choose the test mothod according the regulation:Start-stop method,commutation method,flow time method,etc.
3.The water representation value supports various collection methods: Mobile phone app camera method, high-speed camera camera pulse method, laser pulse method ,485 communication, M-bus communication, near-infrared communication and so on.
4.Optional electric ball valve and electromagnetic Flowmeter, special PID adjustment module to achieve automatic regulation of arbitrary flow.
5.Infrared positioning standard gauge liquid level, with stepping motor to achieve to automatic collection the standard gauge indication value (volume method).
6.Equipped with high-precision electronic weighing, real-time measurement of the quality of the cylinder, to achieve to automatic collection the standard meter indication value(quality method)
7.Image recognition error: 0.33 grid.
8.Equipped with high precision time standard gauge.
9.Digital management without manual intervention.
10.With Software Operate system which more humanized, intelligent, rich interface information,can support remote upgrade.
11.Data processing: automatically calculation and draw verification conclusions, can save,query, correction, statistics, report printing and other database functions.
