  • HS-6133 DC Energy Meter Test Bench
  • HS-6133 DC Energy Meter Test Bench

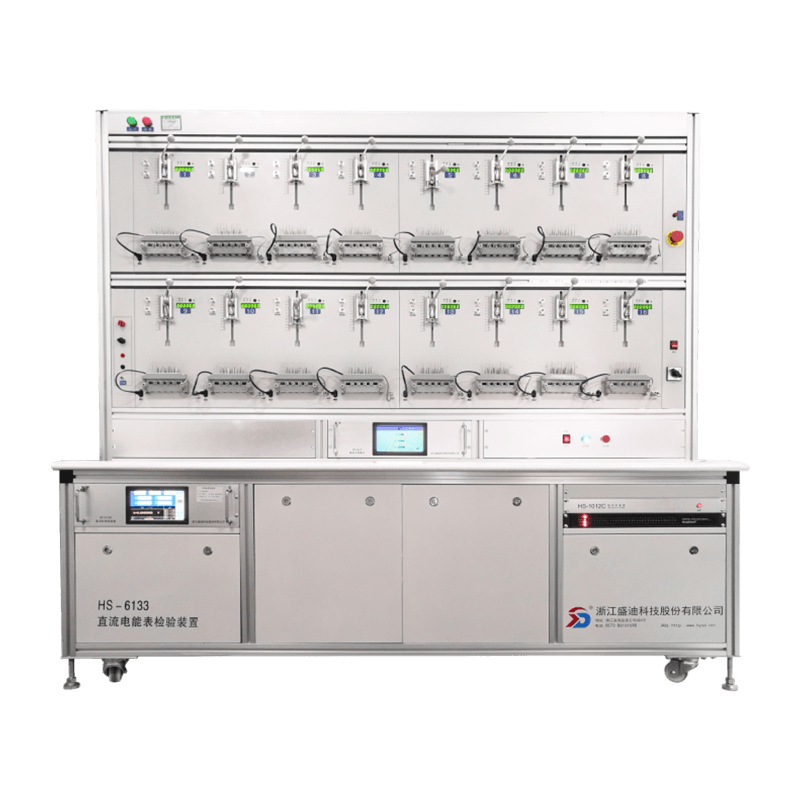

HS-6133 DC Energy Meter Test Bench

HS-6133 DC energy meter test bench can verify all types of DC energy meters with external and internal shunt. The bench has the characteristics of convenient use, high precision, stable index, rich function, novel interface, clear and simple operation and reliable work.

It can be widely used in measurement departments and manufacturers, and can also be used in laboratories.

share:

Phone : 0086-573-86161698

contact us

Description

Item

Technical Parameter

Bench accuracy

0.05/0.02 class

Reference Meter

HS-5103E DC reference standard meter  Accuracy：0.05/0.02 class







Output Voltage

Range

Stability（%/min）

1000V

0.02

500V

0.02

250V

0.02

125V

0.02

62.5V

0.02

Range：1V-1500V，0~120%，Max. output（Option1500V）













Output Current



Range

Stability（%/min）

500A

0.4

100A

0.05

50A

0.05

10A

0.05

5A

0.05

1A

0.02

100mA

0.02

10mA

0.02

1mA

0.02

Output Range：0.1mA~500A,0~120%

Output current small signal（DCIU）

10V

0.02

5V

0.02

2.5V

0.02

1.25V

0.02

0.625V

0.02

100mV

0.02

10mV

0.02

1mV

0.05

Range：1mA~10V，0~120%

Start current output

0.1mA (or 0.01mV) ，accuracy：1%，start-up power：accuracy 1%；

Test function

Basic error, creep test, start test, constant test, daily test

Communication Test

RS485 Communication test，According to the protocol for communication of the measured meters.

Power supply

3 X 220V/380V (Y)±10%，50Hz；

Standard:

GBT 33708-2017 Static meter for direct current energy

JJG 842-1993 Verification Regulation of DC Kilowatt-hour Meter Q/GDW 1825-2013 Technical Specification for direct current electricity meters

JBT 9288-1999 External shunt



Function advantage:

1.Can test direct access DC energy meter and external shunt access DC energy meter;
2.Output DC voltage, current with more channel, stability, covering the commonly used DC energy meter range;
3.Equipped HS-5103E Multi-function DC reference Standard Meter,can be used separately, independent inspection;


Dimensions(unit:mm)

Integration

Position

Number of rack

Dimension：L*W*H

(mm)

Fission

Position

Number of rack

Dimension：L*W*H

(mm)

6



1600*750*1600

6



1600*750*1600

 12



1600*750*1920

16



  2000*750*1920

16



2000*750*1920

Cabinet

600*800*1800
