  • HS-6033 dual-channel photoelectric sampler
  • HS-6033 dual-channel photoelectric sampler

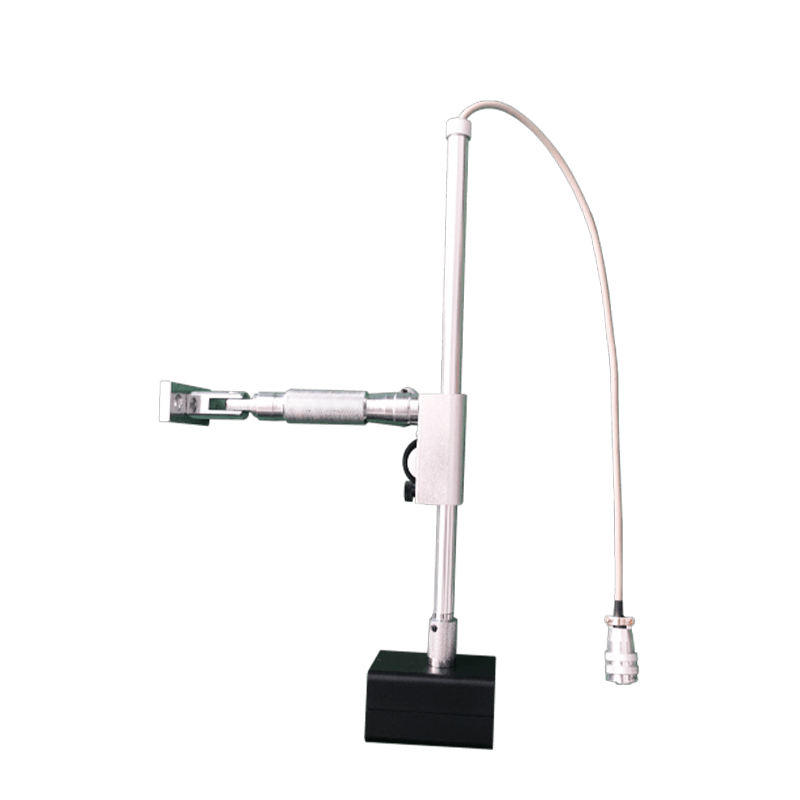

HS-6033 dual-channel photoelectric sampler

HS-6033 dual-channel photoelectric sampler has two-channel pulse collection function, which can meet the requirements of multi-core modular electric energy meter pulse collection and function test of Guonan Network.

share:

Phone : 0086-573-86161698

contact us

Description

Sampling signal wavelength

400~1200nm;

Sampling distance

1~30mm;

Maximum frequency of sampled signal

1kHz (customizable);

Anti-environmental interference

Incandescent light ≤ 1000 lx; ​​sunlight ≤ 1500 lx;

output signal

High level ≥ 4.5V (no pulse), low level ≤ 0.2V (pulse)

Output current

5mA~ 4mA;

Power supply

DC 4.5~5V,

Working current

≤ 20mA;

Ambient temperature

―10~45℃;

Relative humidity

40~80% (work);

Dimensions

58mm×84mm×24mm;

5 core aviation seat wiring definition

1-signal 2, 2-signal 1, 3-5V, 4-0V, 5-reserved;

Main Feature:
1. Automatically adjust the comparison level and sampling sensitivity, compatible with the pulse signal acquisition of various electronic meters.
2. Aiming at the electric energy meter of Guonan Power Network, once locate, complete the collection of two photoelectric signals.
