Item |
Technical Specification |
||
|
Model |

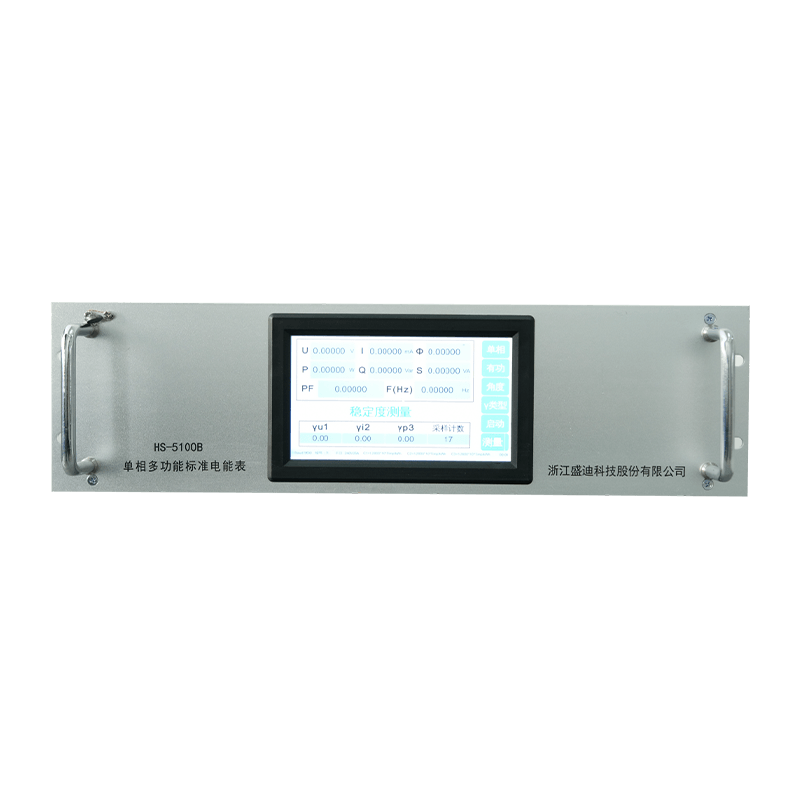

HS-5100B Single-phase multi-functional reference standard meter |
||
|
Accuracy |
0.05 class、0.02class |
||
|
Voltage range |
1-600V |
||
|
Current range
|
Range |
0.05 class |
0.02 class |
|
0.1mA～0.5mA |
≤5000ppm |
≤2000ppm |
|
|
0.5mA～1mA |
≤1000ppm |
≤500ppm |
|
|
1mA～10mA |
≤750ppm |
≤300ppm |
|
|
10mA～50mA |
≤500ppm |
≤200ppm |
|
|
50mA～120A |
≤300ppm |
≤150ppm |
|
|
Frequency |
40-70Hz |
||
|
Harmonic |
2-99 times |
||
|
Power supply |
AC220V±10%，50Hz；Max.power consumption：50VA |
||
|
Temperature |
20℃-30℃ |
||
|
Humidity |
45~80%R.H |
||
|
Weight |
6kg |
||
|
Dimension |
485×500×134mm（L×W×H） |
||
Function advantage
1.Equipped 7”HD touch screen,flexible and convenient operation.
2.Can measure the voltage, current, Power(active,reactive, apparent power)
a.Reactive power algorithms: phase shift 90°、integration、Hilbert；
b.apparent power algorithms：UI、
；
；3.A variety of stability algorithms; waveform display, harmonic analysis, distortion calculation. Spectrum diagram showing the amplitude, content and phase of harmonics;
4.Multi-function test:Vector display, waveform display, harmonic analysis, distortion calculation, spectrum display; can display amplitude, content, phase of harmonic.
5.Can test constant and frequency of the tested meter.
6.3 pulse output port, Can set the constant separately(Manual or Automatic),also can set：active,reactive, apparent power
7.Harmonic analysis：Can analyze the power frequency voltage, current 99 times and below harmonics;
8.Harmonic power calculation, harmonic power pulse output;
9.Accumulation of four-quadrant electric energy;Accumulation of harmonic positive and harmonic negative energy;
10.Adopt uninterrupted sampling, accurate measurement;
-->
