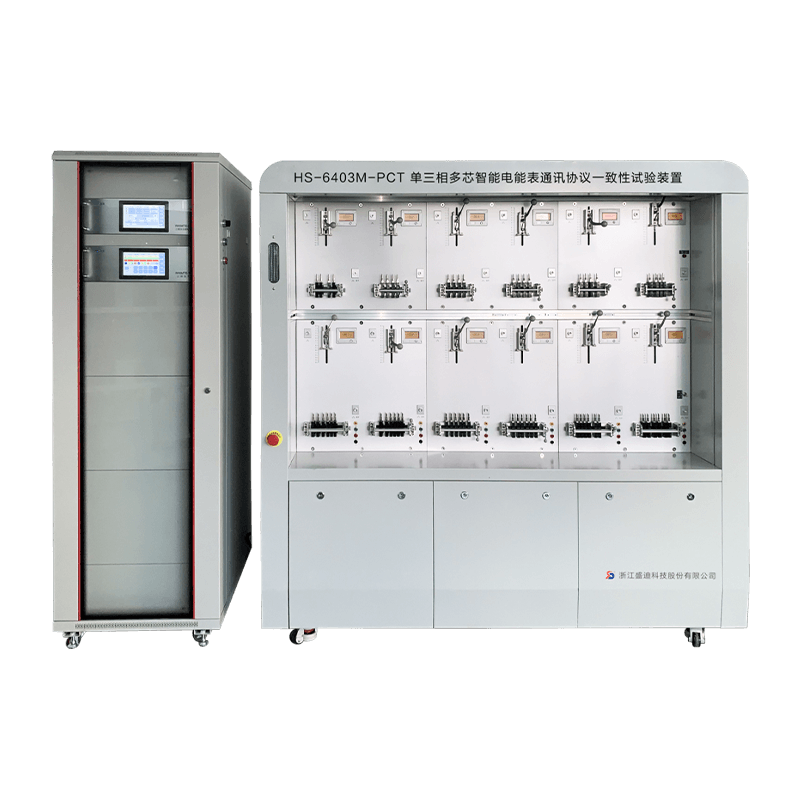

HS-6403M-PCT single three-phase multi-core intelligent electric energy meter communication protocol conformance test device

The HS-6403M-PCT new generation electric energy meter communication protocol conformance test device meets the state grid smart electric energy meter protocol conformance test requirements. It is suitable for the measurement and test center of the State Grid Corporation, the power management part of the power supply company and the electric energy measurement department, and all levels of the country Measurement and testing institutions and electric energy meter manufacturers.

share:

Phone : 0086-573-86161698

contact us

Description

Project

Technical Parameters

Model

HS-6403M-PCT single three-phase multi-function electric energy meter communication protocol conformance test device

Table body accuracy level

0.05 level

Standard table configuration

HS-5300B three-phase multi-function standard electric energy meter, accuracy level: 0.05

The output voltage

0-480V, adjustment range: 0-120%, adjustment fineness: 0.01%;

Output current

0.1mA-120A, adjustment fineness: 0.0001A (minimum);

Output phase

Range: 0-359.99°; adjustment fineness: 0.01°;

Output frequency

45Hz-65Hz; Adjustment fineness: 0.001 Hz;

Output waveform distortion

Voltage and current ≤0.5%;

Power stability

≤ 0.05%

Load characteristics

Resistive, inductive, and capacitive

Communication test

RS485 communication test, according to the communication protocol of the tested meter;

Number of device inspection tables

Single-phase 6-epitope, three-phase 6-epitope (standard); the number of meters can be customized;

Device input power

AC220V±10%, 50Hz, (AC120V/240V order requires instructions)

Maximum power consumption: 2500VA (take three-phase 6+6 epitope as an example)

Dimensions

One-piece (length×width×height mm)

Split type (length×width×height mm)

6+6 epitope: 2200×800×1920

6+6 epitope: 2200×800×1920



Cabinet body: 600×800×1920

Main Feature:
1. Equipped with 7-inch high-definition touch screen, flexible and convenient operation
2. Low-power Bluetooth communication system;
3. Dual-channel photoelectric sampling;
