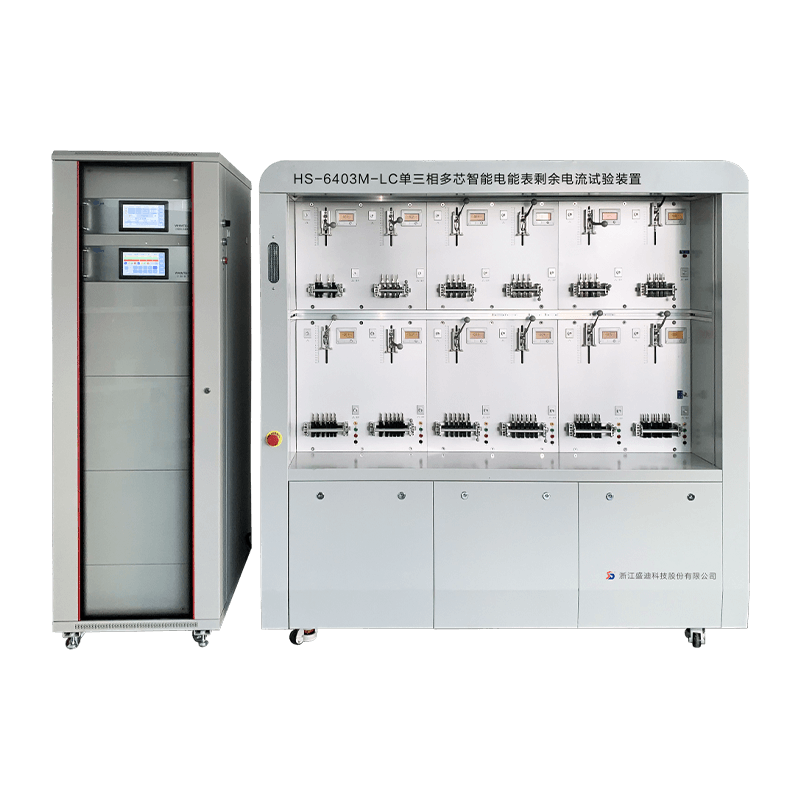

HS-6403M-LC single three-phase multi-core intelligent electric energy meter residual current test device

HS-6403M-LC is a residual current inspection device designed based on the IR46 standard and the requirements of a multi-core modular electric energy meter.
The device is equipped with a PC control management software with a humanized design, which provides a complete solution for the automatic verification of the electric energy meter. At the same time, the DLL required for secondary development is provided, which greatly improves the customer's ability to control and manage the device.

share:

Phone : 0086-573-86161698

contact us

Description

Project

Technical Parameters

Model

HS-6403M-LC single three-phase multi-function electric energy meter residual current inspection device

Table body accuracy level

0.05 level

Standard table configuration

HS-5300B three-phase multi-function standard electric energy meter, accuracy level: 0.05

The output voltage

0-480V, adjustment range: 0-120%, adjustment fineness: 0.01%;

Output current

0.1mA-120A, adjustment fineness: 0.0001A (minimum);

Output phase

Range: 0-359.99°; adjustment fineness: 0.01°;

Output frequency

45Hz-65Hz; Adjustment fineness: 0.001 Hz;

Output waveform distortion

Voltage and current ≤0.5%;

Power stability

≤ 0.05%

Load characteristics

Resistive, inductive, and capacitive

Communication test

RS485 communication test, according to the communication protocol of the tested meter;

Number of device inspection tables

Single-phase 6-epitope, three-phase 6-epitope (standard); the number of meters can be customized;

Device input power

AC220V±10%, 50Hz, (AC120V/240V order requires instructions)

Maximum power consumption: 2500VA (take three-phase 6+6 epitope as an example)

Dimensions

One-piece (length×width×height mm)

Split type (length×width×height mm)

6+6 epitope: 2200×800×1920

6+6 epitope: 2200×800×1920



Cabinet body: 600×800×1920

Main Feature:
1. Equipped with 7-inch high-definition touch screen, flexible and convenient operation
2. Low-power Bluetooth communication system;
3. Dual-channel photoelectric sampling;
4. The residual current accuracy test of the electric energy meter;
5. Electric energy meter residual current alarm test;
