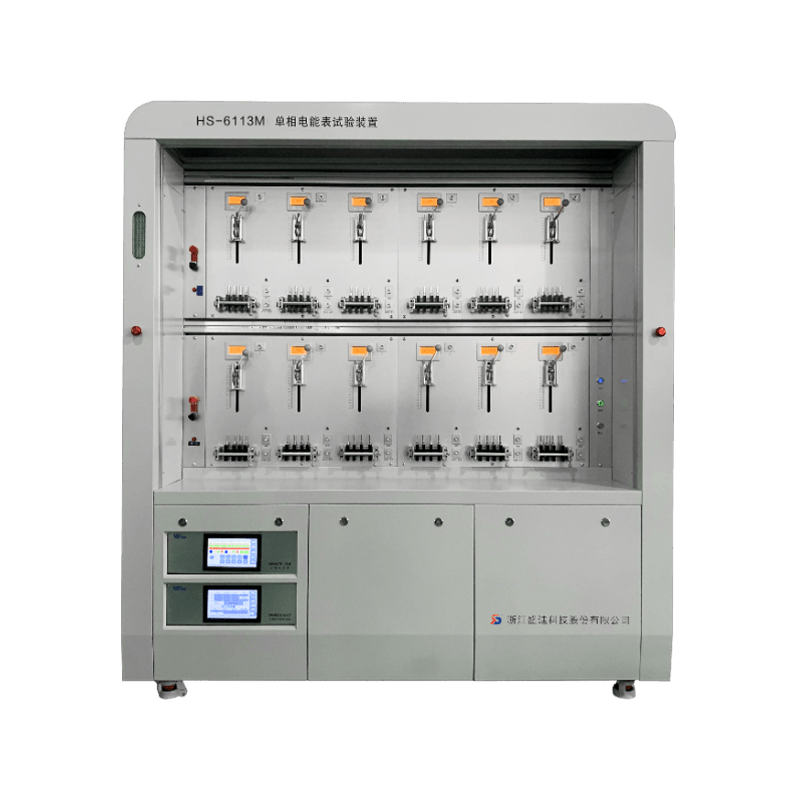

HS-6113M/HS-6313M multi-core intelligent electric energy meter inspection device

The inspection device is designed based on the specific requirements of the "measuring part" of the OIML international standard electric energy meter. It not only supports the function and measurement performance test requirements required in the original smart meter technical standard, but also supports the original smart electric meter (645,698.45) State Grid Electric Division. The inspection and test task sent by the hospital can meet the new test items in the IR46 standard at the same time.

share:

Phone : 0086-573-86161698

contact us

Description

Project

Technical Parameters

Model

HS-6113M single-phase multi-function electric energy meter inspection device (IR46)

Device accuracy level

0.1 level

0.05 level

0.02 level

Device standard table configuration

HS-5100B single-phase multifunctional standard electric energy meter

0.05 level

0.02 level

The output voltage

0-240V; 0-120% range adjustment fineness: 0.01% full scale;

Output current

3×0.1mA-100A fineness of adjustment: 0.0001A (minimum);

Phase

Range: 0-359.99°; adjustment fineness: 0.01°;

frequency

45Hz-65Hz; Adjustment fineness: 0.01 Hz;

Output waveform distortion

Voltage, current <0.5%;

Power stability

≤ 0.1%

≤ 0.05%

≤ 0.02%

Load characteristics

Resistive, inductive, and capacitive

Harmonic output

Harmonic frequency: 2~99 times, up to 10 times of harmonic superposition can be carried out;

Harmonic content: less than 40% (relative to the fundamental wave);

Harmonic phase: 0°~359.99°

Harmonic angle accuracy is better than 1°

Harmonic accuracy is better than 2% (content> 1%))

Start current output

0.1mA (minimum), accuracy: 1%, starting power: accuracy 1%;

Communication test

RS485 communication test, according to the communication protocol of the tested meter;

Number of device inspection tables

24 epitopes (standard); the number of epitopes can be customized;

Device input power

AC220V±10%, 50Hz/60Hz, (AC120V/240V order requires instructions)

Maximum power consumption: 1500VA (take single-phase 24 epitopes as an example)

Dimensions

One-piece (length×width×height mm)

Split type (length×width×height mm)

24 epitopes: 2400×750×1920

24 epitopes: 2400×750×1920



Cabinet body: 600×800×1920



Project

Technical Parameters

Model

HS-6313M Three-phase multifunctional electric energy meter inspection device (IR46)

Device accuracy level

0.05 level

0.02 level

Device standard table configuration

HS-5300B three-phase multi-function standard electric energy meter

0.05 level

0.02 level

The output voltage

3×30-480V; fineness of adjustment in the range of 0-120%: 0.01% full scale, phase adjustment;

Output current

3×0.1mA-100A adjustment fineness: 0.0001A (minimum), phase adjustment;

Phase

Range: 0-359.99°; adjustment fineness: 0.01°, can be adjusted in phases;

frequency

45Hz-65Hz; Adjustment fineness: 0.01 Hz;

Output waveform distortion

Voltage, current <0.5%;

Power stability

≤ 0.05%

≤ 0.02%

Load characteristics

Resistive, inductive, and capacitive

Harmonic output

Harmonic frequency: 2~99 times, up to 10 times of harmonic superposition can be carried out;

Harmonic content: less than 40% (relative to the fundamental wave);

Harmonic phase: 0°~359.99°

Harmonic angle accuracy is better than 1°

Harmonic accuracy is better than 2% (content> 1%))

Start current output

0.1mA (minimum), accuracy: 1%, starting power: accuracy 1%;

Communication test

RS485 communication test, according to the communication protocol of the tested meter;

Number of device inspection tables

16 epitopes (standard); the number of tables can be customized;

Device input power

AC220V±10%, 50Hz, (AC120V/240V order requires instructions)

Maximum power consumption: 5000VA

Dimensions

One-piece (length×width×height mm)

Split type (length×width×height mm)

16 epitopes: 2400×800×1920

16 epitopes: 2400×8-0×1920



Cabinet body: 600×800×1920



Main features of the device:
1. Equipped with 7-inch touch LCD screen, flexible and convenient operation
2. Using high-power high-stability programmable linear amplifier, power dynamic tracking, good stability, high reliability, and large output power
3. The minimum current range is 1mA, which meets the requirements of the IR46 standard for small current testing
4. It can accurately output a variety of waveforms such as sine wave, harmonic, sub-harmonic, odd harmonic, square wave, peak wave, pulse wave, zero-crossing wave and high-order harmonic, and can also customize the waveform output; the highest Can output 50th harmonic, the total harmonic content is up to 40%
5. Support DC even harmonic test
6. A variety of power standard output, optional full wave power, fundamental wave power, harmonic power output; also optional harmonic positive, harmonic reverse, sub-harmonic power output
7. Support IR46 and IEC 10 kinds of harmonic waveform tests, add 7 kinds of special voltage drop and interruption waveforms, and calculate the error by accumulating electric energy for a long time
8. Full support for IR46 and 2020 version related evaluation
9. With load current rapid change test function
10. Support neutral current test function
11. Support Bluetooth pulse, Bluetooth communication system
12. Support dual-channel photoelectric sampling, compatible with the pulse collection requirements of the Guonan network smart electric energy meter
13. Can be customized to support error self-monitoring function
14. Can be customized to support the temperature measurement test function of the terminal block of the electric energy meter
