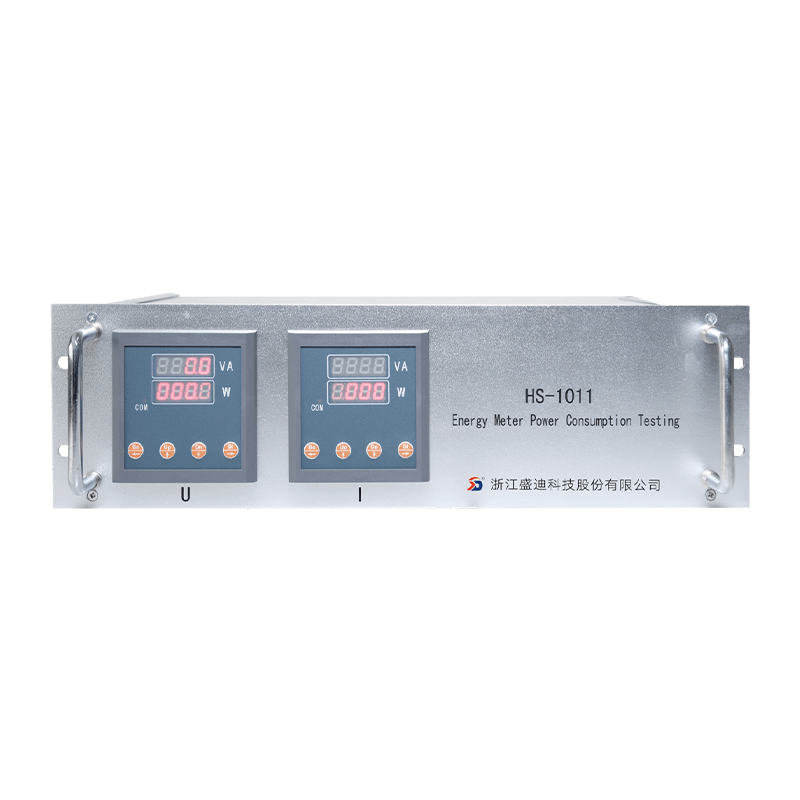

HS-1011 Energy Meter Power Consumption Tester

HS-1011 electric energy meter power consumption tester is a high-performance product specially used to measure the power consumption of electric energy meters. This equipment uses high-precision current transformers to expand the measurement range and achieve low-power measurement of the voltage and current loops of the electric energy meter. It has the advantages of excellent performance, high test accuracy, and convenient testing.

share:

Phone : 0086-573-86161698

contact us

Description

Test accuracy level

Level 3

Measuring range

Input voltage

Voltage loop: 50V~264V
Current loop: 10mV~1V

Input Current

Voltage loop: 5mA~0.6A
Current loop: 1A~120A

Power factor

0.25L~1~0.25C

Measurement parameters

Voltage loop

Apparent power (VA)
Active power (Watt)

Current loop

working environment

temperature

0℃~40℃

humidity

<85% R.H.

Power supply

AC 220V ± 10%, 50 / 60Hz
